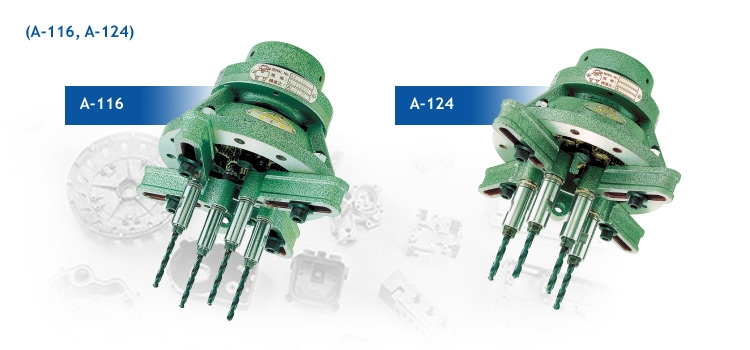

A Type Multi-Spindle Head 8-1

It is an adjustable 4 spindles head.
It is suitable for small distance requirement.
It use flexible collet.
A type adjustable multi-spindle is not capable of adjusting linear four-axis machining. For linear processing, please refer to the U.

Type	Collet	R.P.M.	Maximum Driling Capacity	Lowest Distance	Max. Range of Centers	Spindle
A-116	C-6	1:1.35	6.0	18	100	3-4
A-124	C-9	1:1.3/1:1	8.0	26	124	3-4
